Loudspeaker System Projects

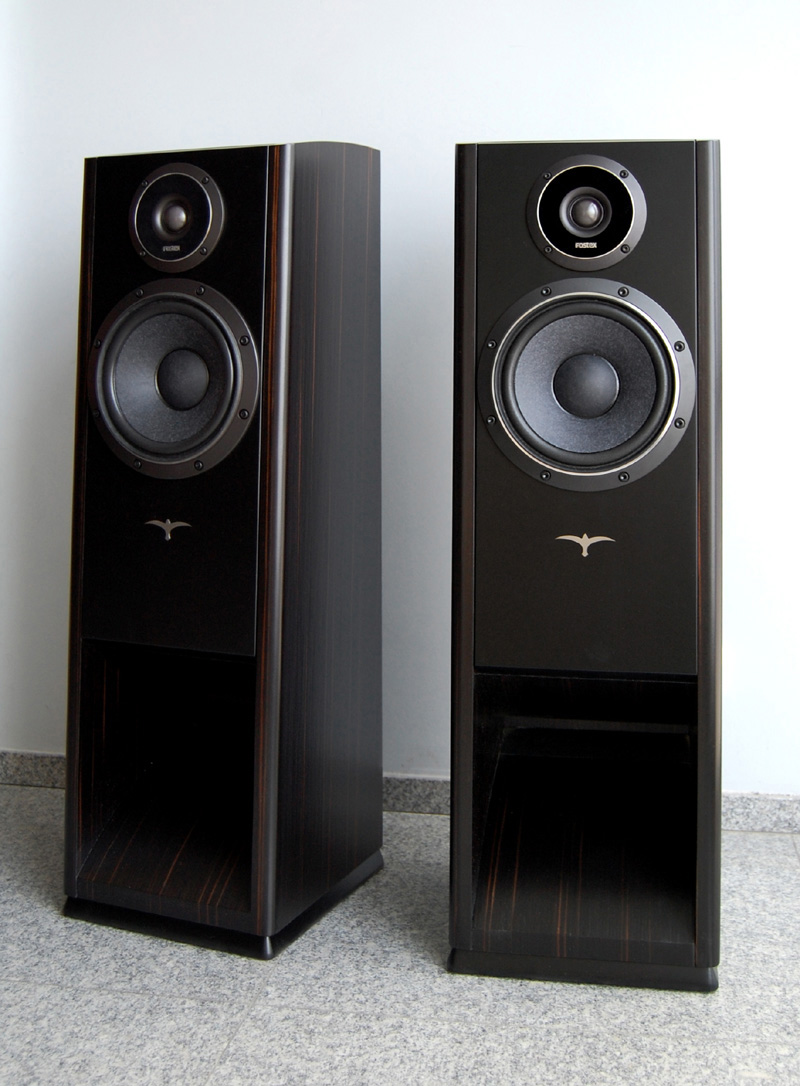

The CapriHorn

This system is a result of a careful design and long improvement, aimed to achieve wide frequency response and excellent stereo reproduction, keeping the box dimensions as compact as possible.

CapriHorn System type Passive Two Way
Enclosure type Big Vent Reflex (BVR)
Placement Floorstanding
Efficiency 90 dB/W/m
Impedance 8 Ω
Drivers Used Fostex FW-208N
Fostex FT-28D / Fostex FT-48D

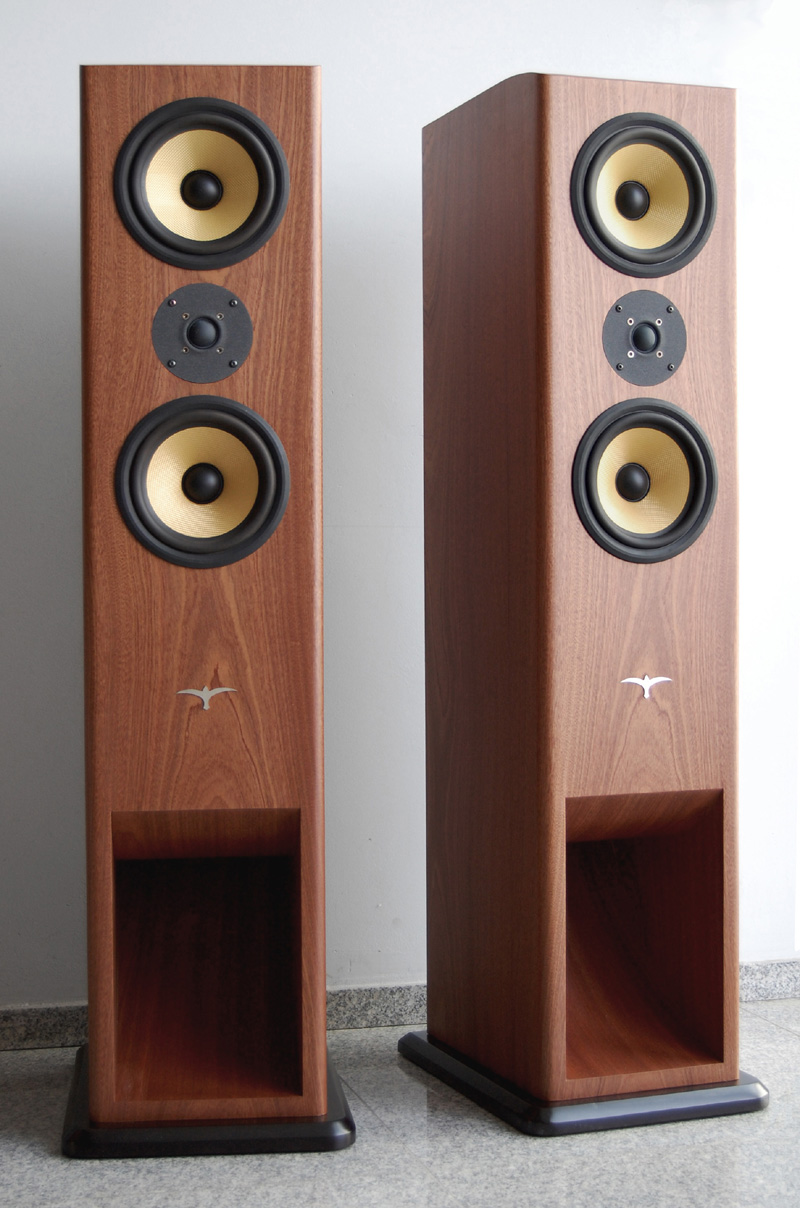

B&W BVR Two Way

Started as a small upgrade of B&W CDM7, this project ended with completely new loudspeaker system.

B&W BVR Two Way System type Passive Two Way
Enclosure type Big Vent Reflex (BVR)
Placement Floorstanding
Efficiency 93 dB/W/m
Impedance 4 Ω
Drivers Used B&W ZZ10075
AUDAX TW025A26

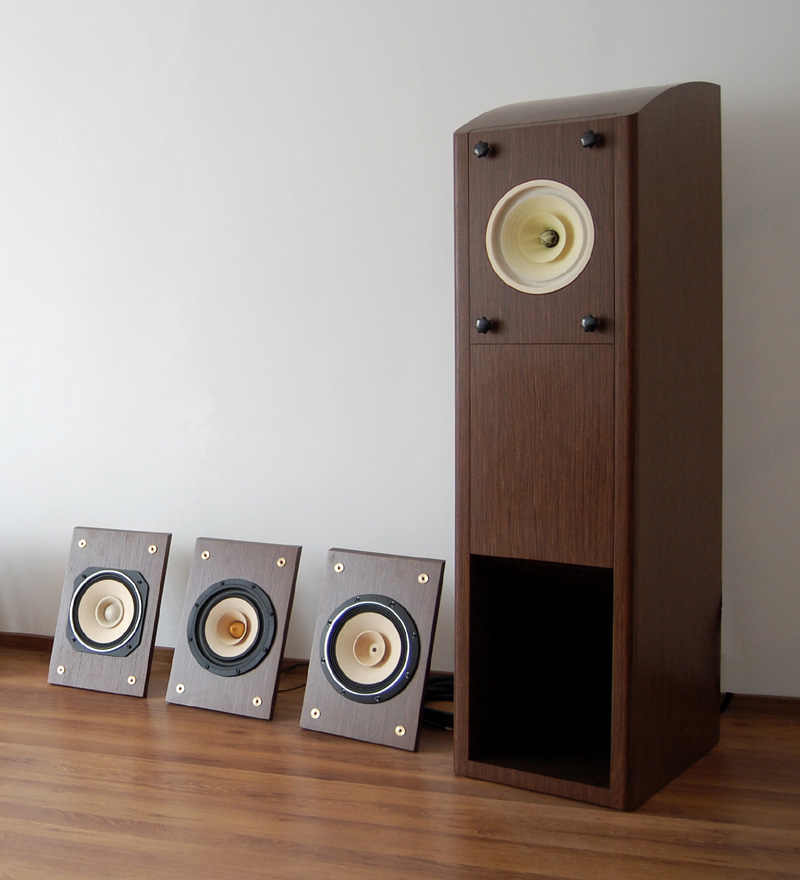

The Universal Horn

An universal horn that fits all drivers does not exist and cannot be built due to the different parameters of each driver. This project delivers an acceptable condition for a certain range of eight-inch fullrange drivers for a listening assessment.

The Universal Horn System type One Way Fullrange
Enclosure type Back Loaded Horn (BLH)
Placement Floorstanding
Drivers Used Audio Nirvana Super8 Cast Frame
Coral Beta 8
Fostex FE-208Σ
Fostex FP-203
TangBand W8-1772
